Introduction:

On September 23, 2022, Senate Bill 972 (SB 972) was signed by the Governor and became effective January 1, 2023. This bill modified the California Retail Food Code (CRFC) to reduce some structural and operational requirements for lower risk sidewalk food vending operations. SB 972 created a new category of Mobile Food Facilities termed Compact Mobile Food Operation (CMFO).

This document provides information on the structural requirements based on the CRFC for CMFOs that handle unpackaged foods. The type of food service for these types of CMFO's is restricted to Limited Food Preparation as defined in the California Retail Food Code Section 113818. Examples of menu items that easily fit within limited food preparation include but are not limited to hot dogs, cut fruit, shaved ice, roasted nuts, popcorn, or churros.

Plan submittal is required for the review of any new CMFO, and plans must be approved before applying for a Health Permit. Use the Plan Submittal Checklist to ensure that all necessary information is included as part of the plan submittal.

  1. Commissary means a health permitted food facility that services mobile food facilities.
  2. Compact Mobile Food Operation (CMFO) for purposes of this document means an unenclosed mobile food facility that operates from a pushcart, pedal-driven cart, wagon, or other nonmotorized conveyance.
  3. Food Compartment means an enclosed space, including, but not limited to, an air pot, blender, bulk dispensing system, covered chafing dish, and covered ice bin, with all of the following characteristics:
    1. The space is defined by a physical barrier from the outside environment that completely encloses all food, food-contact surfaces, and the handling of unpackaged food.
    2. All access openings are equipped with tight-fitting closures, or one or more alternative barriers, that effectively protects the food from contamination, facilitates safe food handling, while minimizing exposure to the environment.
    3. It is constructed from materials that are nontoxic, smooth, easily cleanable, and durable and is constructed to facilitate the cleaning of the interior and exterior of the compartment.
  4. Limited Food Preparation means preparation that is limited to:
    • Heating, frying, baking, roasting, popping, shaving of ice, blending, steaming or boiling of hot dogs, or assembly of non-prepackaged food.
    • Dispensing and portioning of non-potentially hazardous food or dispensing and portioning for immediate service to a customer of food that has been held at the required temperatures.
    • Slicing and chopping of non-potentially hazardous food or produce that has been washed at an approved facility.
    • Slicing and chopping of food on a heated cooking surface during the cooking process.
    • Juicing or preparing beverages that are for immediate service, in response to an individual consumer order, that do not contain frozen milk products.
    • Hot and cold holding of food that has been prepared at an approved permanent food facility.
    • Reheating of food that has been prepared at an approved permanent food facility.
  5. Potentially Hazardous Food (PHF) means a food that requires time or temperature control to limit bacterial growth or toxin formation. Examples include but are not limited to, tamales, sliced melons, burritos.
MINIMUM REQUIREMENTS Not handling raw meats, raw poultry, or raw fish Handling raw meats, raw poultry, or raw fish
Health Permit Yes Yes
Plan Check Submission Yes Yes
Hand sink Yes Yes
Utensil washing sink No, if there are adequate number of utensils Yes
Water heater No Yes
Mechanical refrigeration for PHF Yes Yes
Commissary required Yes Yes

This document can be used as part of the plan submission process for your proposed CMFO. You may draw your own plans using this document as guidance, but all items listed in this document must be represented in your submitted plans. Operators are required to have all plans approved prior to the construction of the CMFO to prevent any additional costs that would be incurred if modifications are needed should changes be noted on the plans. All items provided on the following pages are required unless otherwise noted.

  1. Submit one set of complete, easily readable plans that are drawn to scale.
  2. Drawings must show all four (4) sides and the top view of the CMFO and a complete plumbing diagram.
  3. Include equipment location on the drawing and submit a manufacturer specification sheet for all proposed equipment.
  4. Submit proposed menu or list of all items to be offered for sale.
  5. Submit completed plan check application and applicable plan check fee.
  6. Once the CMFO plan review process is completed, and the CMFO is built per the approved plan, schedule a final inspection. At the final inspection be prepared to submit the following documents:
    1. Commissary/support unit agreement
    2. Written Operational Procedures
    3. Route Slip
  7. Once the CMFO is approved, a Public Health Permit application is to be submitted along with applicable fees to operate.

Please use the below checklist as a guide to assist you in the plan review process

COMPLETED

ITEMS TO INDICATE ON PLANS
  Each piece of equipment identified by manufacture and model and its location on the CMFO - All equipment must be an integral part of the CMFO
  Table listing the material of finishes of the interior, exterior, and/or storage areas of the CMFO
  Indicate equipment power source Battery   Propane Tank
  Location of the First Aid Kit
  Location of 10 BC-rated fire extinguisher (required if electrical or gas equipment is used)
COMPLETED

SINK AND PLUMBING REQUIREMENTS
  CMFO FOOD CART NOT HANDLING RAW MEATS, RAW POULTRY, OR RAW FISH CMFO FOOD CART HANDLING RAW MEATS, RAW POULTRY, OR RAW FISH


Handwashing Sink

An integral handwashing sink with minimum dimensions: 9" wide X 9" long X 5" deep. Warm water not required.

Handwashing Sink

An integral handwashing sink with minimum dimensions: 9" wide X 9" long X 5" deep. Warm water required.


Utensil washing sink IS NOT REQUIRED if adequate number of spare clean utensils and cutting boards are provided.

Note:
All utensils/equipment must be washed and sanitized on a daily basis at the commissary and the CMFO must be equipped with an adequate supply of spare preparation and serving utensils when in use.

If there is built in food contact surfaces that cannot be easily replaced, such as a milk steamer nozzle, a utensil washing sink with hot water is required.

Utensil washing sink IS REQUIRED
An integral 3-compartment utensil washing sink must be provided that meets the following requirements:

Each sink compartment must have minimum dimensions: 12" wide X 12" long X 10" deep OR 10" wide X 14" long X 10" deep.

The utensil washing sink must be stainless steel and equipped with dual integral drainboards that are at least the size of one of the compartments.


Potable Water Tank/Wastewater Tank

Minimum 5 gallons for handwashing with a minimum 7.5-gallon wastewater tank.

Potable Water Tank/Wastewater Tank

Minimum 20 gallons required: 5 gallons for handwashing and 15 gallons for utensil washing Additional capacity is needed if product water is needed. All potable water tanks shall be manufactured and listed to NSF standards for potable water.

Wastewater tank shall have a minimum capacity that is 50% greater than the potable water tank.


Potable Water Tank/Wastewater Tank

Minimum capacity is 150% greater than the total capacity of provided potable water tanks. Where an ice bin is provided for storage, display or service of food/beverage, an additional holding tank capacity equal to one-third the volume of the bin must be provided. Multiple removeable tanks may be used.


Water Heater

Not required

Water Heater

Handwashing sink - a water heater with minimum 0.5-gallon capacity or an instantaneous heater is required and must be capable of supplying a minimum of 100°F running water.

Utensil washing sink - a minimum 4-gallon capacity water heater is required and must be capable of supplying a minimum of 120°F running water.
NOTE: Steam table reservoirs cannot be used as a water heater.

COMPLETED

ADDITIONAL REQUIREMENTS


Plumbing Lines

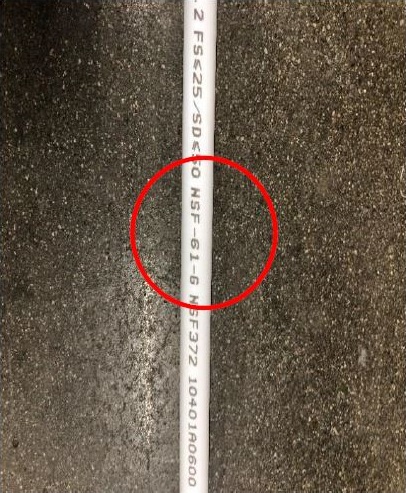

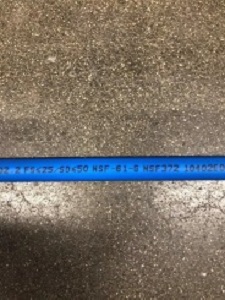

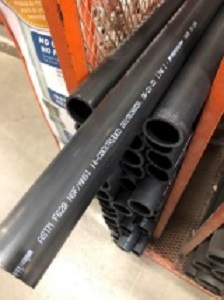

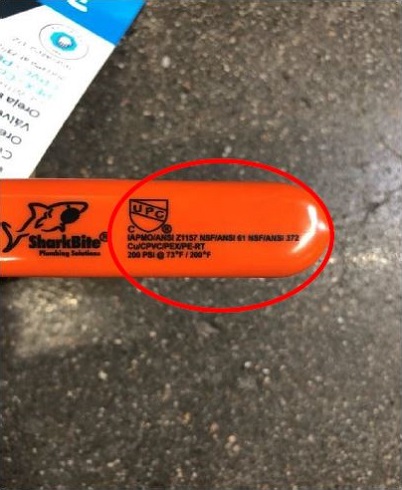

Potable water lines must be listed to NSF 61 for potable water. Waste lines cannot be the same color as the hoses for potable water. Typical potable water line colors are clear, white, or blue. Typical wastewater lines are black or grey.


Water Pump

Pump for potable water supply must be listed to NSF standards. No pump will be approved for drainage. All liquid waste drainage must be done by gravity.
COMPLETED

EQUIPMENT


Certified Equipment

All equipment must be certified for sanitation.
Note: 3rd party evaluations are accepted (e.g., NSF, ETL, CSA, UL, NEMKO, etc.)


Mechanical Refrigeration

Required if holding or handling potentially hazardous foods, other than prepackaged ice cream or frozen fruit bars. Must be capable of holding food at or below 41°F.


Hot-holding Unit

Required if hot holding potentially hazardous food. Must be capable at hot holding at or above 135°F.


Separate storage compartments for clean and soiled utensils and storage for food or non-food items


Food Compartment

Typical equipment requiring a compartment includes, but is not limited to: hot dog steamer, Italian ice serving freezer, fryer, griddle, and preparation area.
Typical equipment NOT requiring a compartment includes, but is not limited to: espresso machine, microwave, ovens, air pots, blenders.
COMPLETED

ADDITIONAL REQUIREMENTS


Name of Facility, City, State, and Zip Code of the permit holder affixed to the CMFO.

Lettering of the Facility Name: 3" high minimum
Lettering of the City, State, and Zip Code of the permit holder: 1" high minimum

COMPLETED

DOCUMENTS TO BE INCLUDED WITH PLAN SUBMITTAL
  Completed plan check application and applicable plan check fee.
  Menu or list of all items being offered on the CMFO
  Equipment manufacturer specification sheets for all proposed equipment

LIST OF MENU/ITEMS BEING SOLD
Espresso, Lattes, Acai Bowl, Fruit Smoothies, Prepackaged Nutrition Bars, and Whole Fruit

FINISH MATERIALS

*Raw wood not permitted to be used as exterior CMFO material

LOCATION/EQUIPMENT MATERIAL
Exterior of CMFO Stainless Steel
Interior of CMFO Stainless Steel/ Fiberglass Reinforced Panel (FRP)
Food Storage Area FRP
Food Preparation Compartment N/A
Other: Exterior Vinyl Trim

FOOD SERVICE EQUIPMENT LIST

EQUIPMENT MANUFACTURER MODEL
Espresso Machine Nuova Simonelli Appia Life Compact2
Blender Vita Mix 36019-ABAB
Undercounter Refrigerator Bev-Air UCR27HC
Coffee Brewer Bunn Axiom DV APS
Air Pots Bunn 32130.000
Acrylic Prepackaged Food Display Custom Custom
Ice Bin with 2 Piece Lid Moli International BIB-1118-D 13”
Soap Dispenser San Janmar S30TBK
Paper Towel Dispenser Bobrick B-2620

POWER/GAS PLAN

Select all applicable options and fill in the blanks for each one:

  • DC Battery* (Quantity 1 )
  • AC Battery (Quantity    )
  • Propane Tank (Pounds    ; Quantity    )

*Requires Inverter

EXAMPLE OF PLUMBING DIAGRAM WITH 3 COMPARTMENT SINK

Example diagram of plumbing diagram with 3 compartment sink

Plumbing Notes:

  • Utensil washing sink provided to wash/sanitize permanently installed equipment which contacts food.
  • All plumbing lines shall be connected to the tanks with watertight seals.

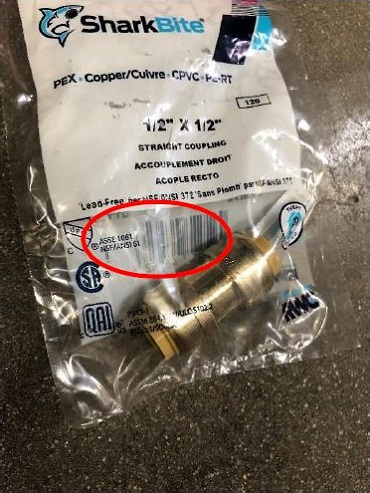

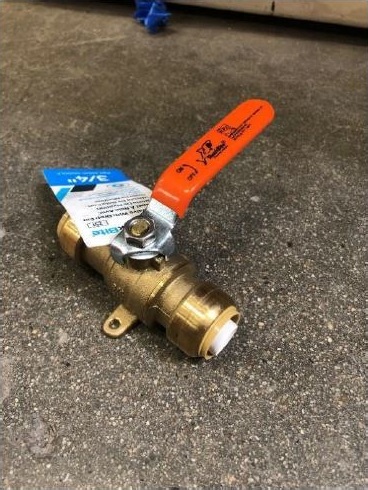

  • Potable water lines, couplings, and valves shall be listed to NSF standards for drinking water.

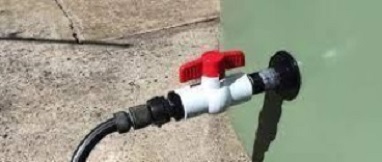

  • Potable water tanks and wastewater tanks mounted in the CMFO shall have an air ventoverflow installed draining outside of the CMFO in a downward direction covered with 16 meshper square inch screen.

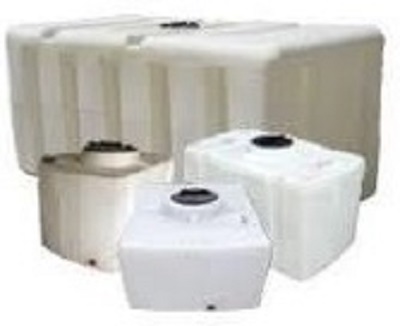

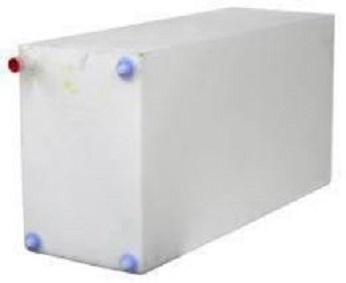

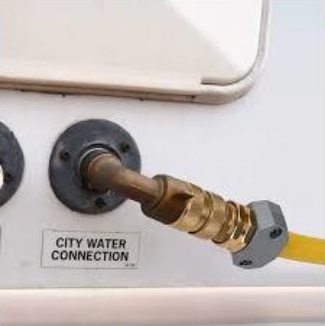

  • Tanks may be removeable. If they are not removeable, they must be equipped with a fill linethat has a nonthreaded quick disconnect coupler. They must also be installed sloped towards adrainage outlet equipped with a valve.
  • Tanks and hose inlets and outlet fittings shall be protected with a cap and keeper chain, quickdisconnect, or closed cabinet when not in use.
  • Waste lines must be a different color than the lines for potable water.
  • The 3-compartment sink must be stainless steel and equipped with dual integral drainboardsthat are at least the size of one of the compartments.

WATER PUMP MANUFACTURER AND MODEL: _________________________________________

WATER HEATER MANUFACTURER AND MODEL: _______________________________________

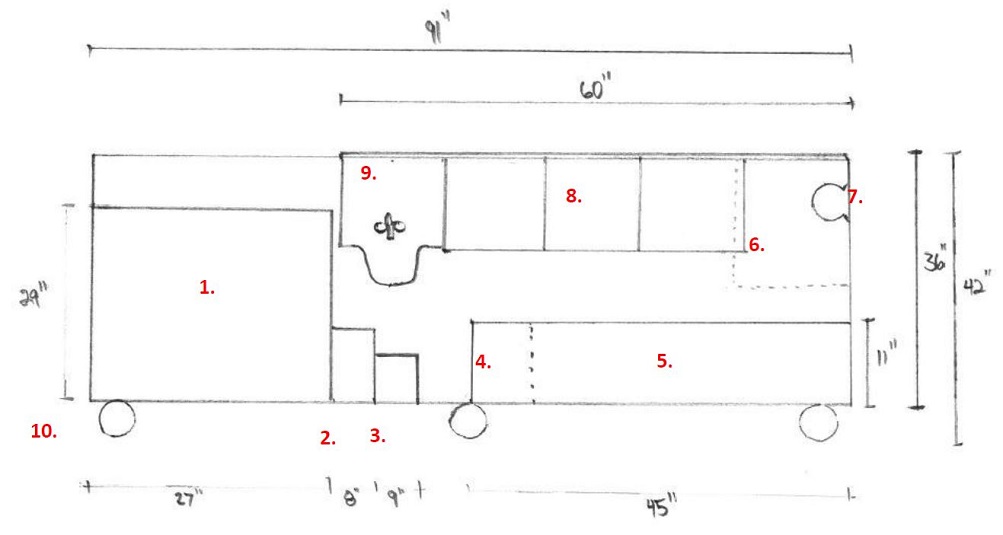

LEFT SIDE VIEW OF CMFO- Internal View Showing Location of the Equipment

Example diagram of internal view showing location of the equipments
  1. Refrigerator
  2. Battery, 12V 277 Amps
  3. Inverter
  4. 40 Gallon Wastewater Tank
  5. 20 Gallon Tank Potable Water Tank
  6. 6 Gallon Water Heater
  7. Water Pump
  8. 3-Compartment Sink
  9. Handwashing Sink with Soap and Paper Towel Dispenser
  10. 6" Swivel Casters
    11.

Scale: 1” = 1'

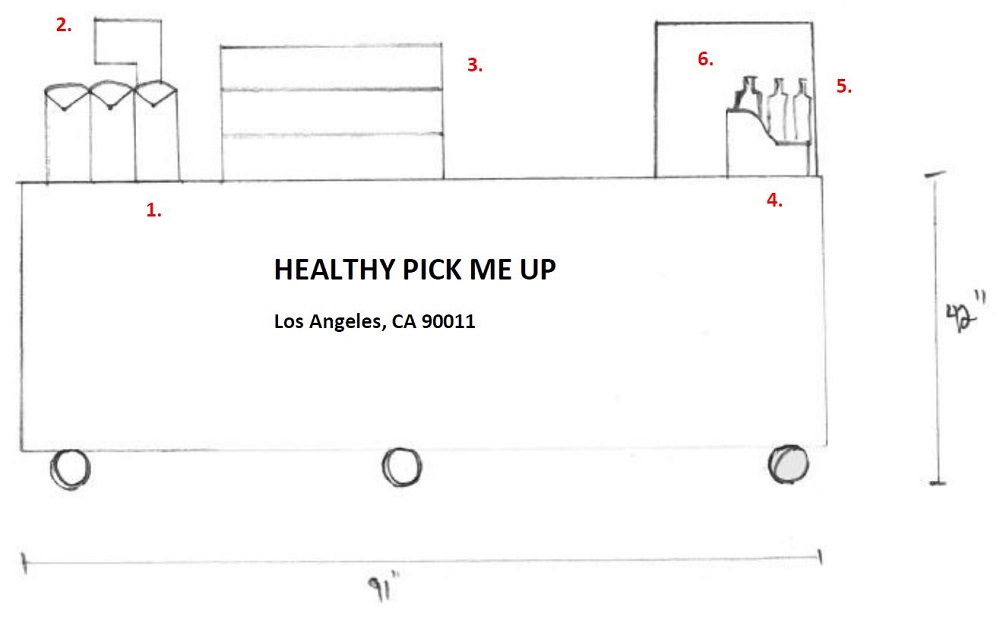

RIGHT SIDE VIEW OF CMFO- Showing Customer Side

Example diagram of showing customer side
  1. Airpot Coffee Dispenser
  2. Coffee Brewer
  3. Display Shelving
  4. Point of Sale- Register
  5. Flavored Syrup with Pumps
  6. Espresso Machine
    7.

*NOTE: Lettering of the business name: 3" high minimum

City, State, and Zip Code of the permit holder: 1" high minimum

Scale: 1” = 1'

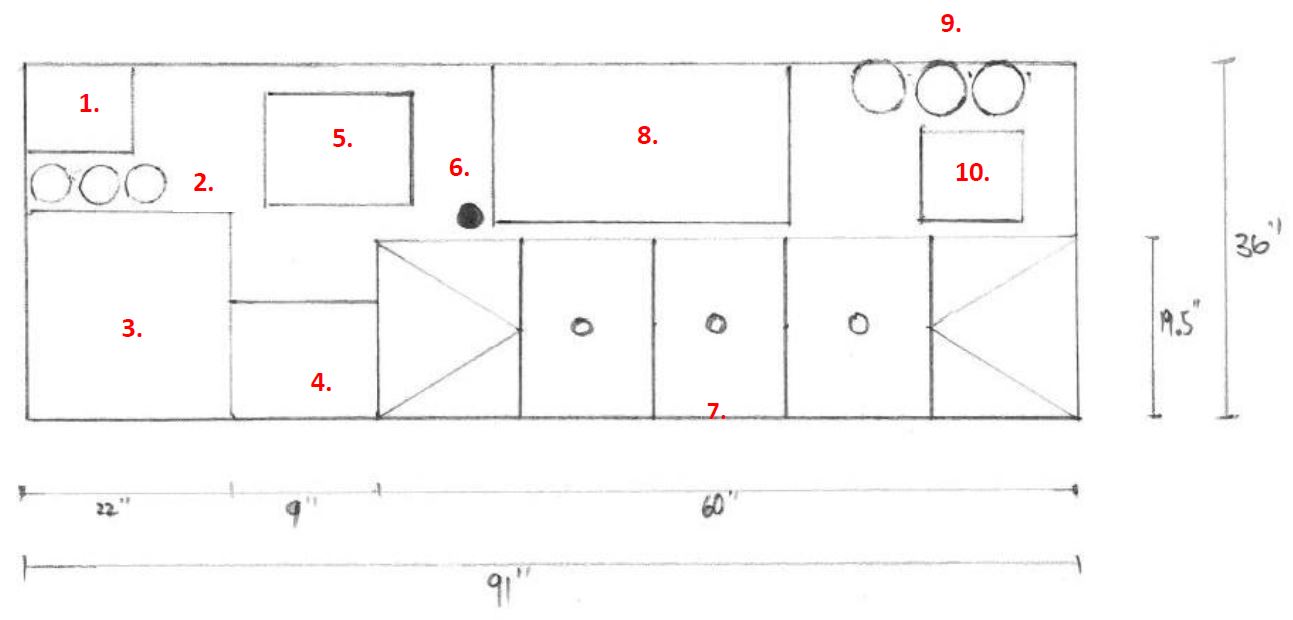

TOP SIDE VIEW OF CMFO

Example diagram of top side view of CMFO
  1. Point of Sale - Register
  2. Flavored Syrup with Pumps
  3. Espresso Machine
  4. Blender
  5. Ice Bin with 2 Piece Lid
  6. Grommet for Umbrella
  7. 3-Compartment Sink
  8. Display Shelving
  9. Airpot Coffee Dispenser
  10. Coffee Brewer
    11.

Scale: 1” = 1'

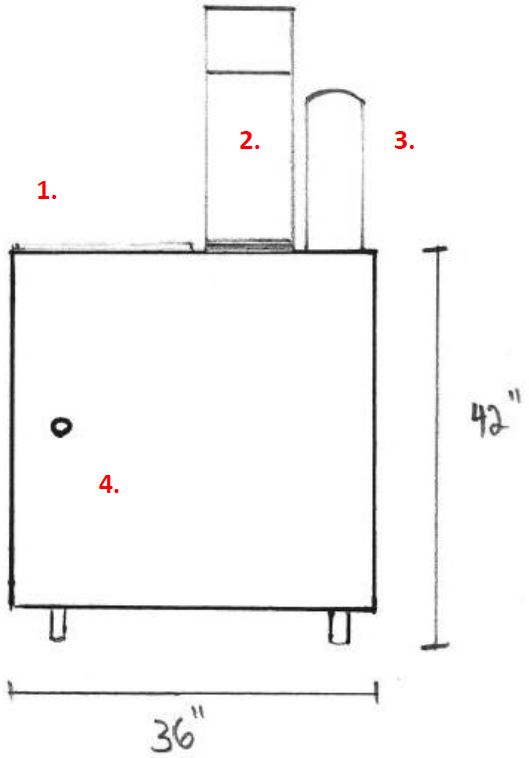

LEFT END FROM CUSTOMER SIDE VIEW OF CMFO

Example diagram of left end from customer side view of CMFO
  1. 3-Compartment Sink
  2. Coffee Brewer
  3. Airpot Coffee Dispenser
  4. Quick Disconnect Potable Water fill with Chain and Cap
    5.

Scale: 1” = 1'

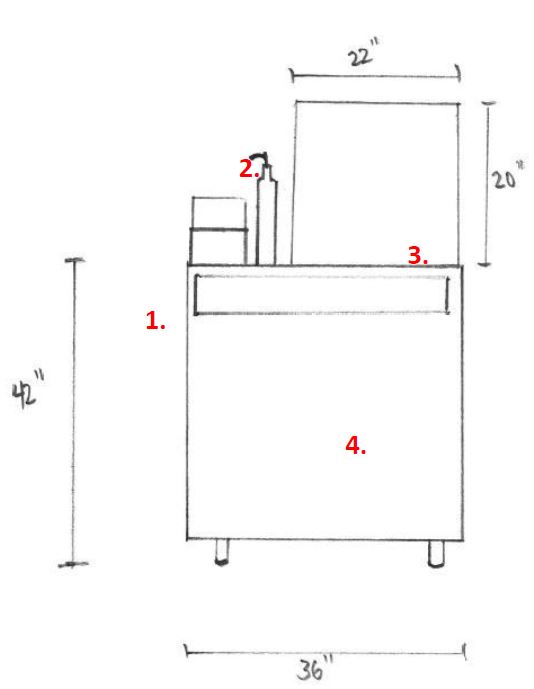

RIGHT END FROM CUSTOMER SIDE VIEW OF CMFO

Example diagram of right end from customer side view of CMFO
  1. Point of Sale - Register
  2. Flavored Syrup with Pump
  3. Espresso Machine
  4. Cup Storage Area
    5.

Scale: 1” = 1'

LIST OF MENU/ITEMS BEING SOLD
Steamed Hot dogs, Prepackaged- Ketchup, Mustard, Relish, Mayonnaise (shelf stable), Canned Soda, Bottled Water

FINISH MATERIALS

*Raw wood not permitted to be used as exterior CMFO material

LOCATION/EQUIPMENT MATERIAL
Exterior of CMFO Stainless Steel
Interior of CMFO Stainless Steel/ Fiberglass Reinforced Panel (FRP)
Food Storage Area FRP
Food Preparation Compartment N/A
Other: N/A

FOOD SERVICE EQUIPMENT LIST

EQUIPMENT MANUFACTURER MODEL
Undercounter Refrigerator Bev-Air UCR27HC
Bun Warmer APW Wyott BWD-75N
Electric Steam Table Wells 5P-SS206-120







POWER/GAS PLAN

Select all applicable options and fill in the blanks for each one:

  • DC Battery* (Quantity 1 )
  • AC Battery (Quantity    )
  • Propane Tank (Pounds    ; Quantity    )

*Requires Inverter

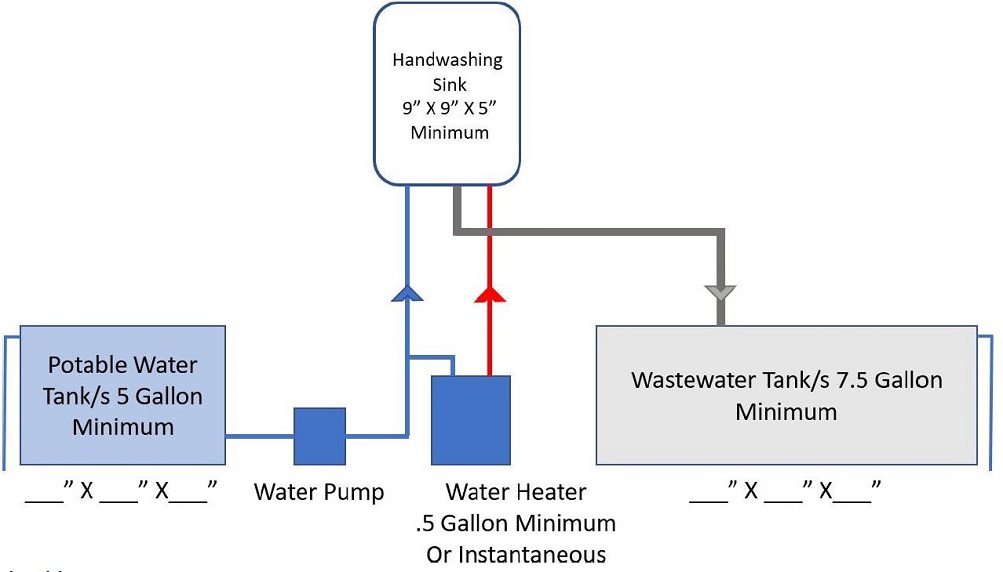

EXAMPLE OF PLUMBING DIAGRAM WITHOUT 3 COMPARTMENT SINK

Example of plumbing diagram without 3 compartment sink

Plumbing Notes:

  • Water heater is optional if no raw meats are handled.
  • All plumbing lines shall be connected to the tanks with watertight seals.
  • Potable water lines, couplings, and valves shall be listed to NSF standards for drinking water.
  • Potable water tanks and wastewater tanks mounted in the CMFO shall have an air vent overflow installed draining outside of the CMFO in a downward direction covered with 16 mesh per square inch screen.
  • Tanks may be removeable. If they are not removeable, they must be equipped with a fill line that has a nonthreaded quick disconnect coupler. They must also be installed sloped towards a drainage outlet equipped with a valve.
  • Tanks and hose inlets and outlet fittings shall be protected with a cap and keeper chain, quick disconnect, or closed cabinet when not in use.
  • Waste lines must be a different color than the lines for potable water.

WATER PUMP MANUFACTURER AND MODEL: _________________________________________

WATER HEATER MANUFACTURER AND MODEL: _______________________________________

LEFT SIDE VIEW OF CMFO- Internal View Showing Equipment Placement

Example of plumbing diagram without 3 compartment sink
  • Refrigerator
  • Bun Warmer
  • Potable Water Tank
  • Wastewater Tank
  • Wastewater Tank
  • Handwashing Sink with Soap and Paper Towel Dispenser
  • Drop-in Steamer
  • Water Heater
  • Battery 12V, 277Amp
  • Inverter
    •

Scale: 1” = 1'

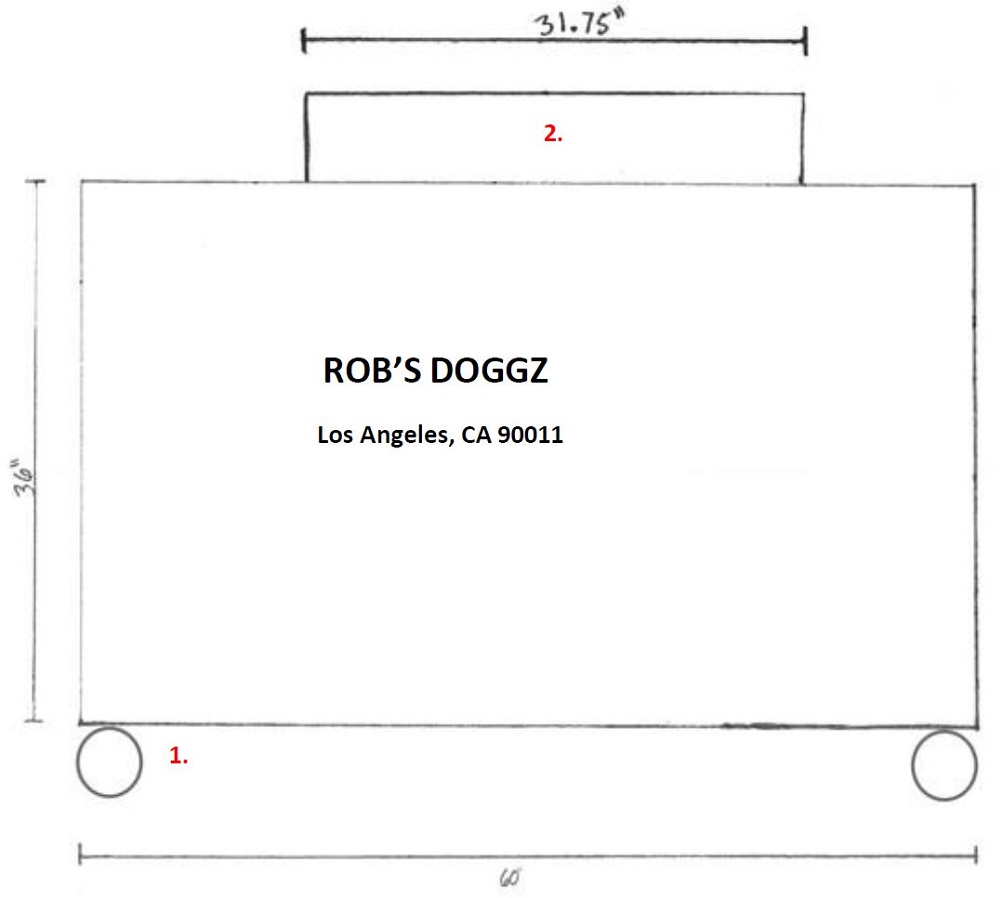

RIGHT SIDE VIEW OF CMFO - Showing Customer Side

Example diagram of showing customer side
  • 6" Swivel Casters
  • Bun Warmer
    •

*NOTE: Lettering of the business name: 3"high minimum

City, State, and Zip Code of the permit holder: 1" high minimum

Scale: 1” = 1'

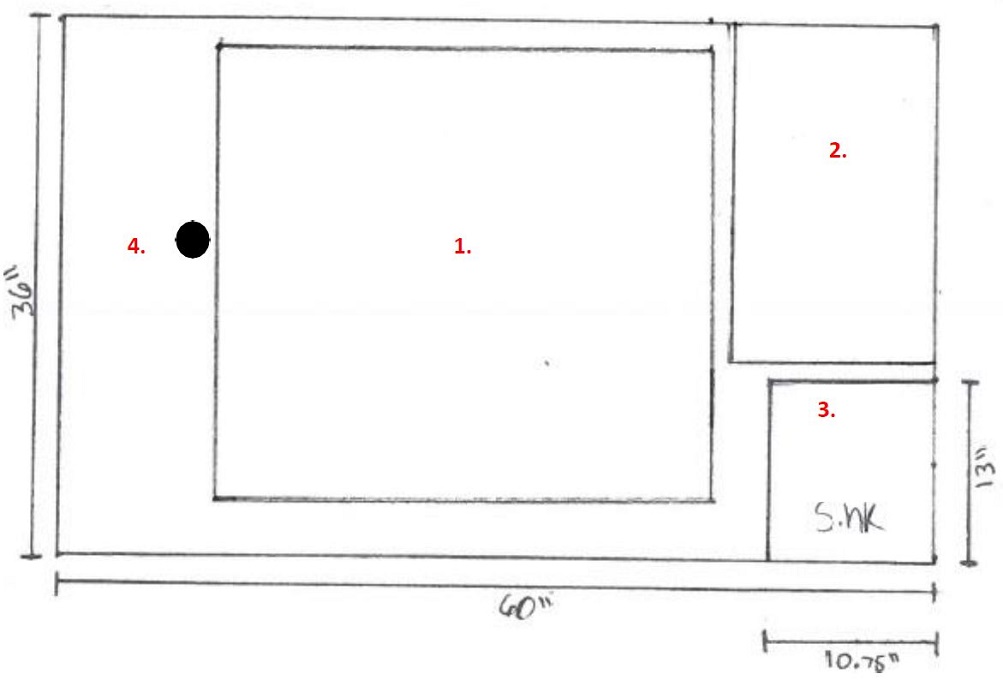

TOP SIDE VIEW OF CMFO

Example diagram of top side view of CMFO
  • Bun Warmer
  • Drop-in Steam Table
  • Handwashing Sink with Soap and Paper Towel Dispenser
  • Grommet for Umbrella
    •

Scale: 1” = 1'

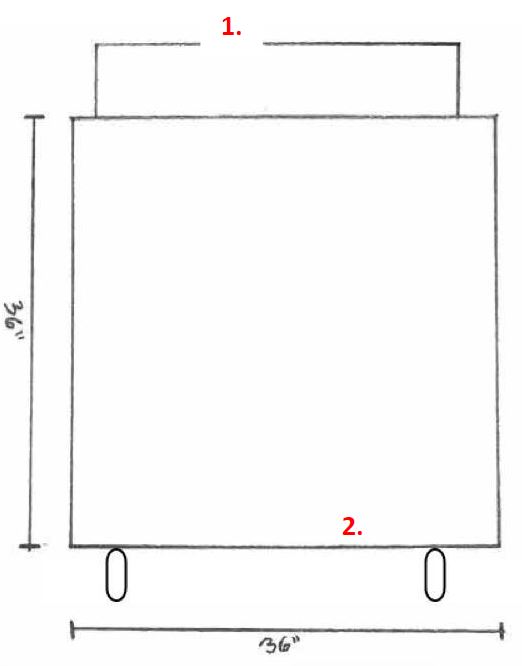

LEFT END FROM CUSTOMER SIDE VIEW OF CMFO

Example diagram of left end from customer side view of CMFO
  • Bun Warmer
  • 6" Swivel Casters
    •

Scale: 1” = 1'

RIGHT END FROM CUSTOMER SIDE VIEW OF CMFO

Example diagram of right end from customer side view of CMFO
  • Bun Warmer
  • 6" Swivel Casters
  • Push Bar
  • Paper Towel Dispenser
    •

The following are some examples of the types of equipment that can be used to accomplish the code requirements.

  1. All plumbing lines shall be connected to the tanks with watertight seals.
    Watertight seal with attached ball valve on the side wall of a tank

    Watertight seal with attached ball valve on the side wall of a tank

    Inside tank view of watertight seal

    Inside tank view of watertight seal

  2. Potable water lines, couplings, and valves shall be listed to NSF standards for drinking water.
    PEX Piping Ball Valve

    PEX Piping Ball Valve

    ANSI/NSF 61 Label on handle

    ANSI/NSF 61 Label on handle

    Straight Coupler with ANSI/NSF Label on bag

    Straight Coupler with ANSI/NSF Label on bag

    PEX Potable Water line with NSF- 61 label

    PEX Potable Water line with NSF-61 label

  3. Potable water tanks and wastewater tanks mounted in the CMFO shall have an air vent overflow installed draining outside of the CMFO in a downward direction covered with 16 mesh per square inch screen.
    Pipe with mesh

    Pipe with mesh

    Typical mesh screens

    Typical mesh screens

  4. Tanks may be removeable. If they are not removeable, they must be equipped with a fill line that has a nonthreaded quick disconnect coupler. They must also be installed sloped towards a drainage outlet equipped with a valve.
    Fill line to non-portable tank with a quick disconnect coupler

    Fill line to non-portable tank with a quick disconnect coupler

    Removeable portable tanks

    Removeable portable tanks

    Non-portable tank with connections to vent, fill, drain, and for the water pump

    Non-portable tank with connections to vent, fill, drain, and for the water pump

    Removeable portable tank with quick disconnect for supply or wastewater (black lines typically denote waste)

    Removeable portable tank with quick disconnect for supply or wastewater (black lines typically denote waste)

  5. Tanks and hose inlets and outlet fittings shall be protected with a quick disconnect
    Quick disconnect coupler

    Quick disconnect coupler

  6. Waste lines shall not be the same color as the lines for potable water.
    Potable white PVC line with NSF label

    Potable white PVC line with NSF label

    Non-potable/wastewater black PVC pipe

    Non-potable/wastewater black PVC pipe

    Blue potable PEX line with NSF label

    Blue potable PEX line with NSF label

    Clear potable vinyl line with NSF

    Clear potable vinyl line with NSF

    7.

Contact Us
